1. Receive signals from multiple frequency bands and multiple satellite systems at the same time.
2. Small size, light weight, low power consumption and strong portability.
3. Provide fast update rate for highly dynamic application scenarios.
4. Small energy-saving module provides centimeter-level accuracy.
5. Easy integration of RTK helps shorten product time to market.
6. Switchable mobile station and base station.

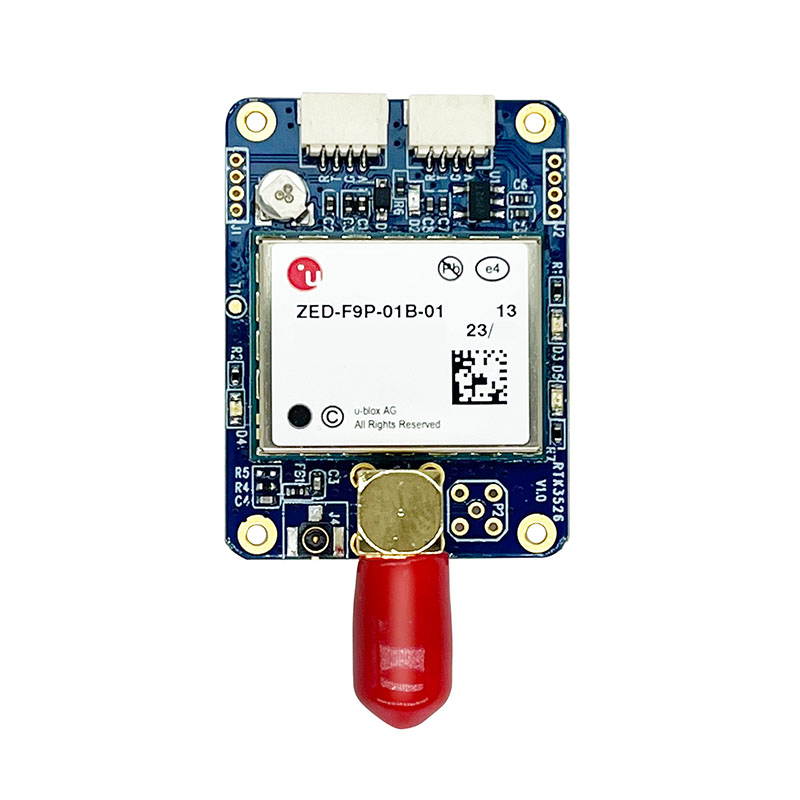

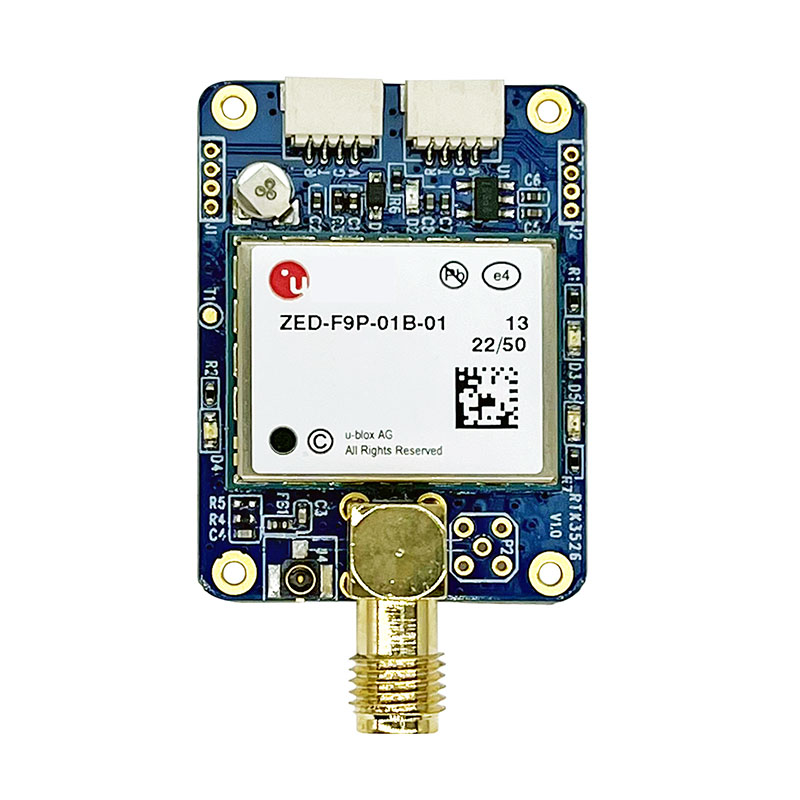

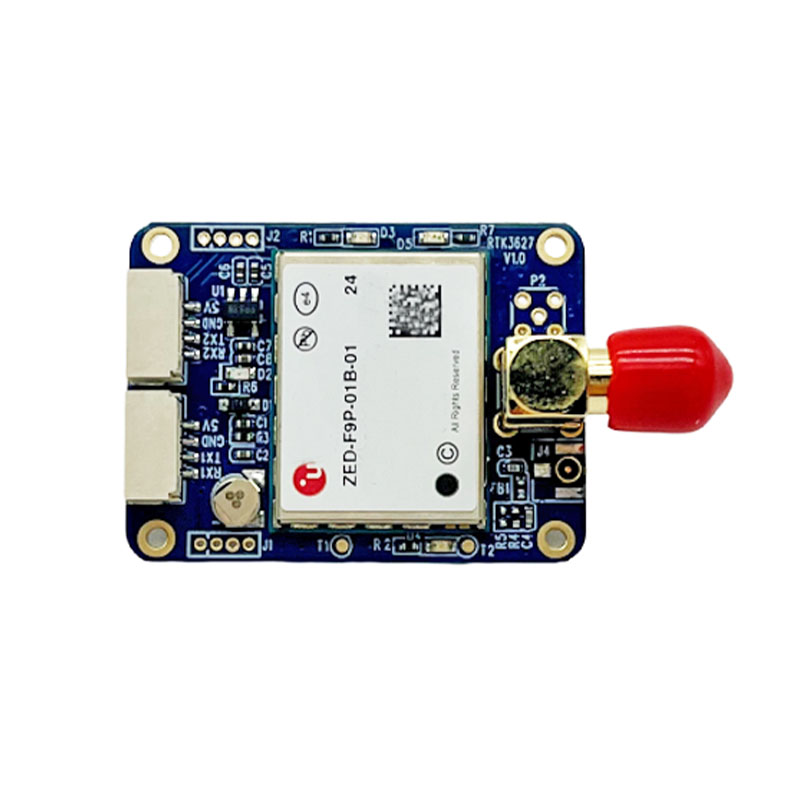

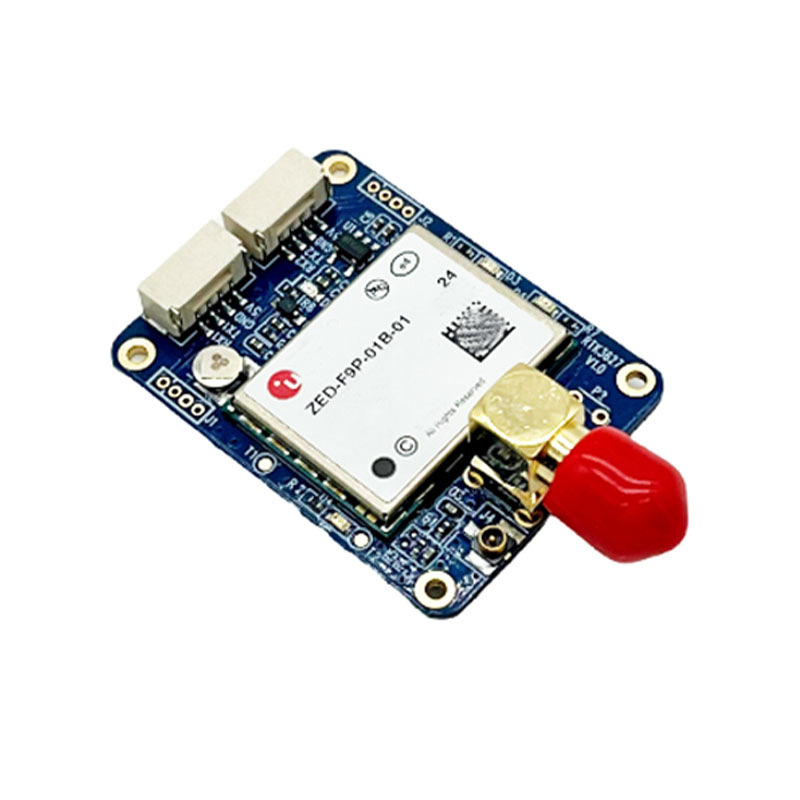

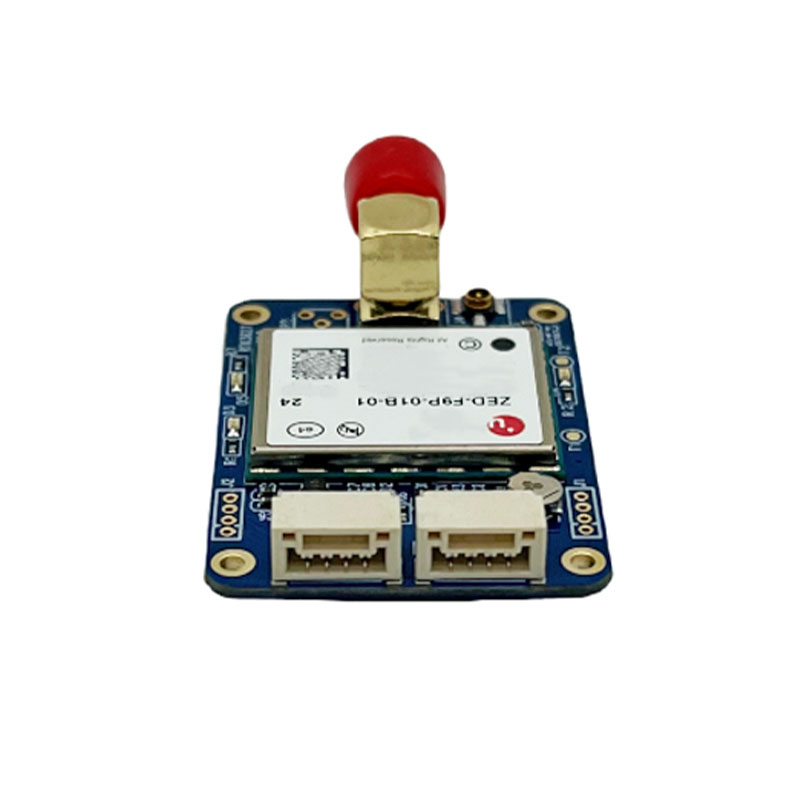

Chip: ZED-F9P-01B-01.
Frequency range: GPS G1/G2, GLONASS L1/L2, BDS B1/B2, GALILEO E1/E5, QZSS.
Cold start: -148dBm.
Hot start: -157dBm.
Baud rate: 4800-921600bps, default 38400bps.
Output level: TTL level.
Update frequency: Default 1Hz.
Supply voltage: 3.3-5.0V, default 5.0V.

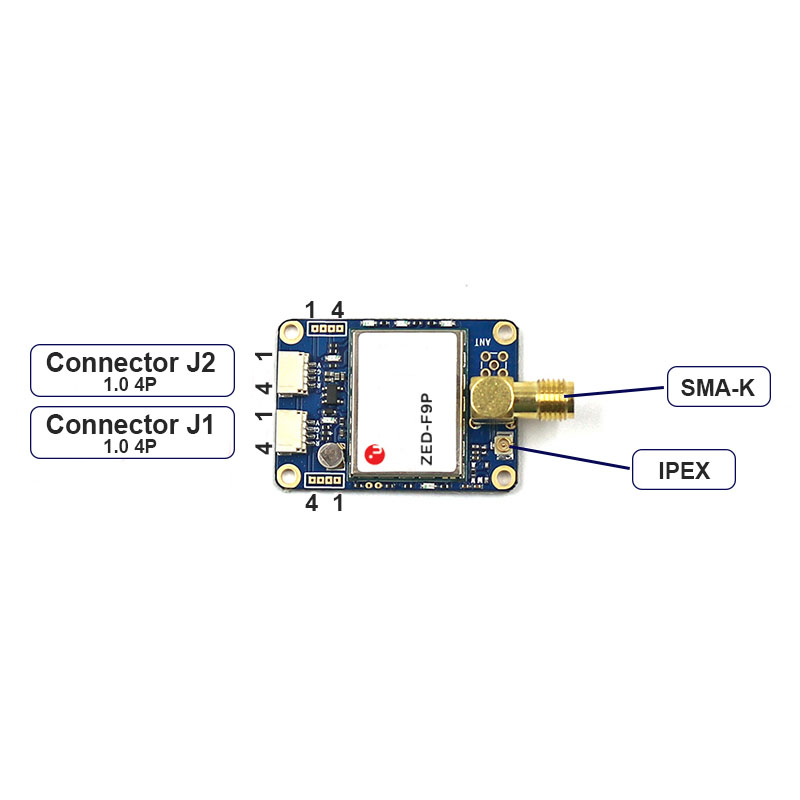

Seat spacing: 2 1.0 pitch 4PIN seats.
