1. Compact size and highly integrated.
2. Power consumption is less than 25mW without affecting GNSS performance.
3. Using Super-S technology, even a small antenna has excellent performance.
4. Super-E mode can extend battery life, and power consumption is reduced by 65% in this mode.
5. Features advanced jamming, spoofing and RF interference suppression.
Frequency range: GPS L1 C/A QZSS L1 C/A/S, GLONASS L10F, BDS B1I/B1C, GALILEO E1B/C, SBAS L1 C/A: WAAS, EGNOS, MSAS, GAGAN.
Cold start: -148dBm.
Hot start: -157dBm.
Baud rate: 4800-921600bps, default 38400bps.
Output level: TTL level.
Update frequency: Default 1Hz.
Supply voltage: 3.3-5.0V, default 5.0V.

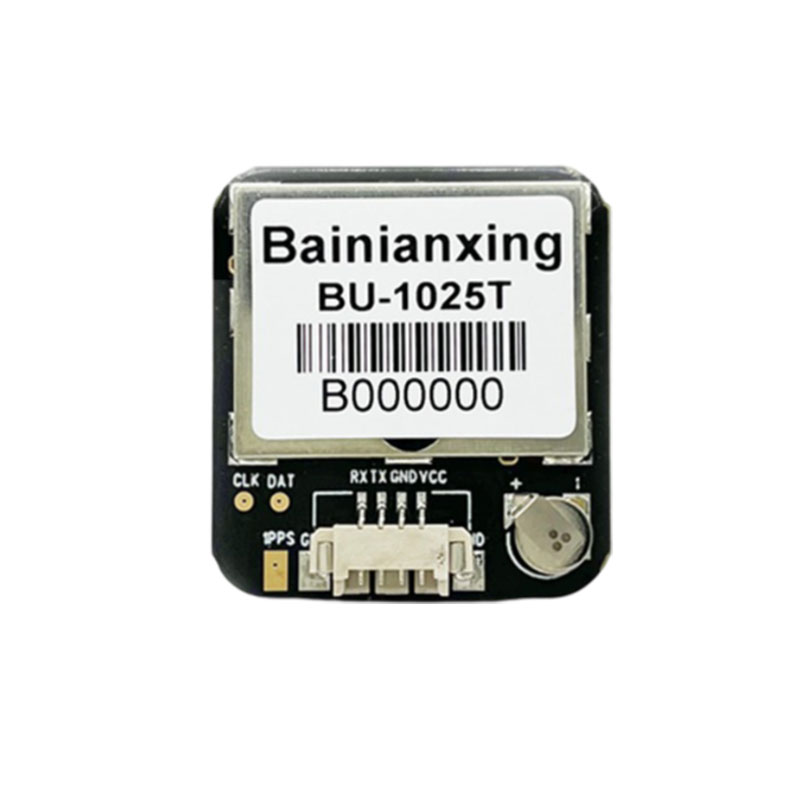

Interface: 1.25mm 4PIN.
