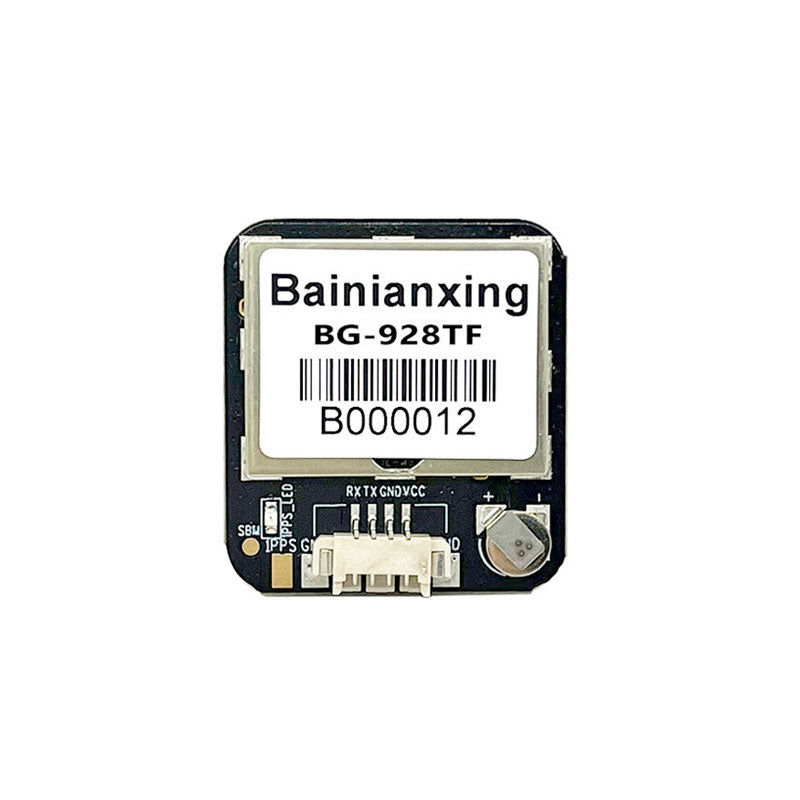

  • Bainianxing GPS module with barcode on a white background

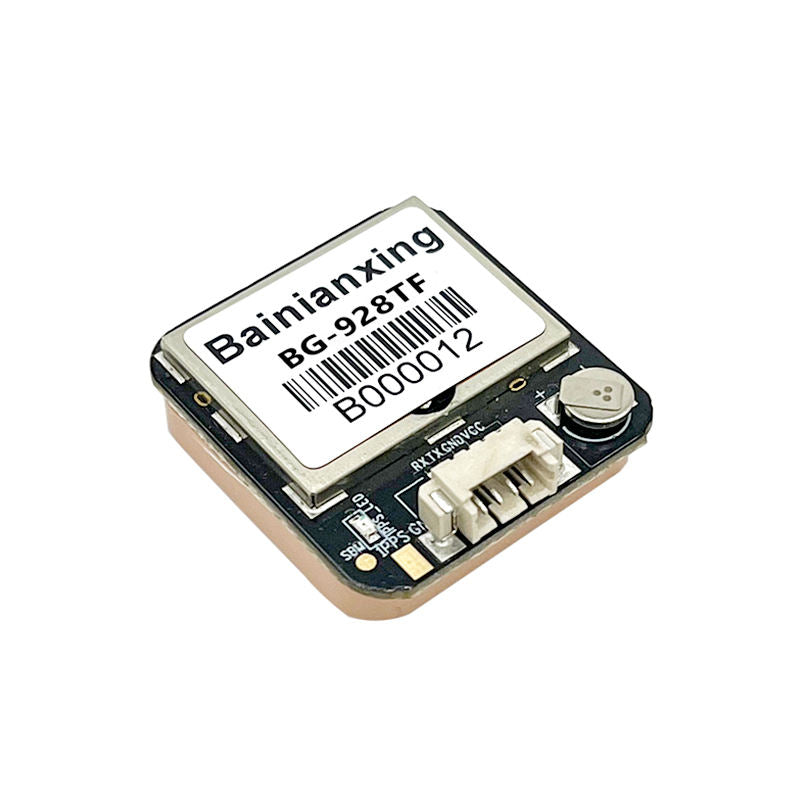

  • GPS module with Bainianxing branding on a white background

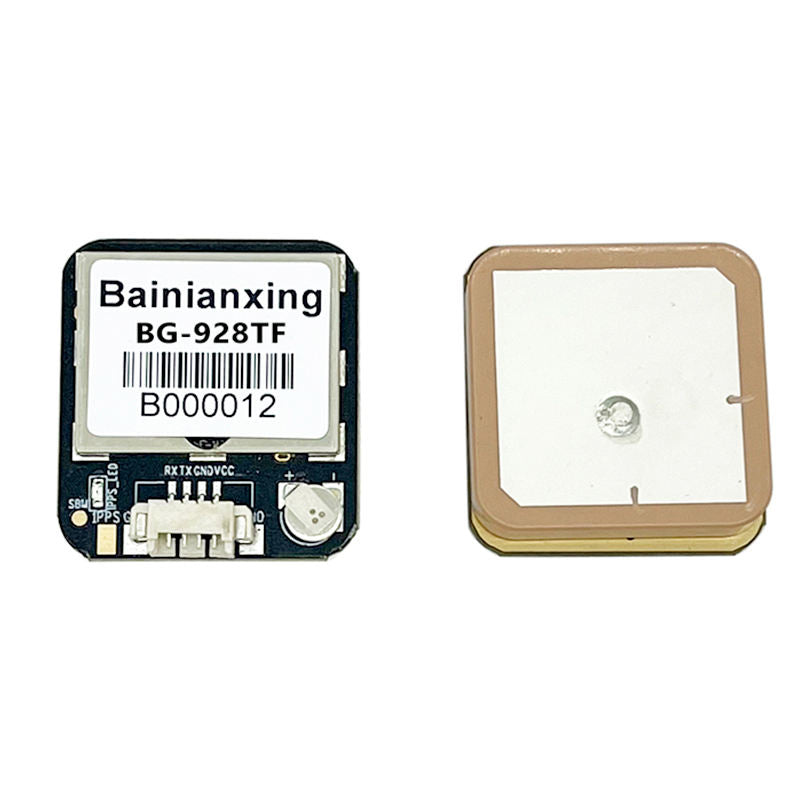

  • GPS module with 'Bainianxing' branding on a white background

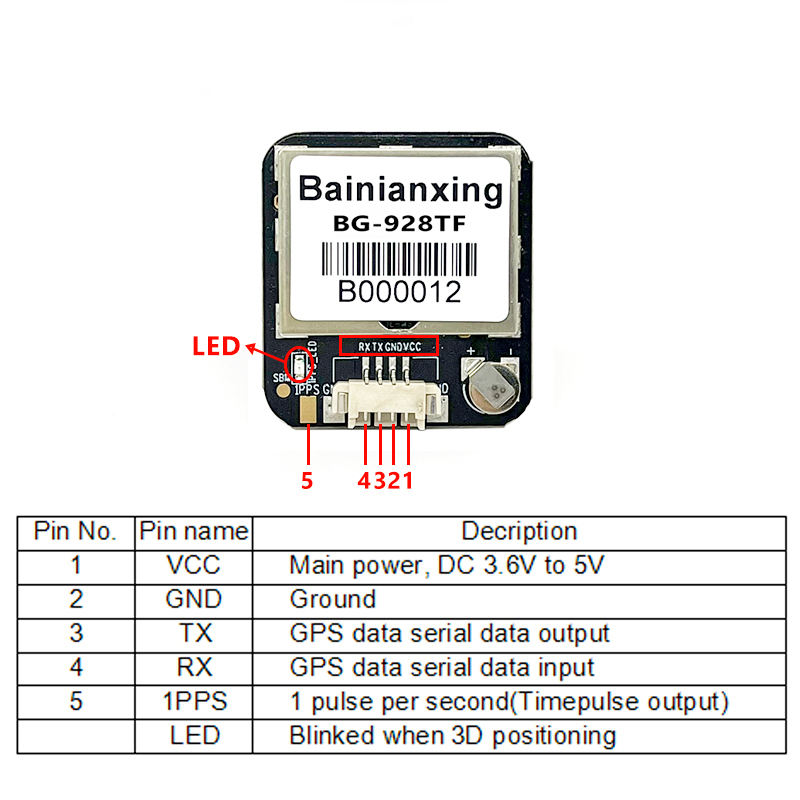

  • Bainianxing GPS module with pinout diagram on a white background

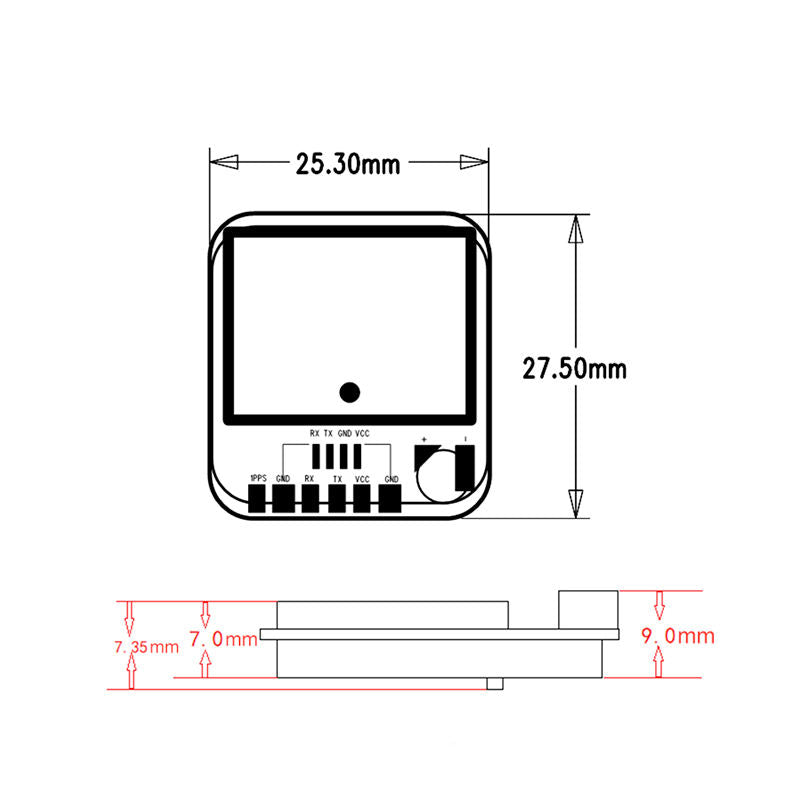

  • Technical drawing of a small electronic device with dimensions labeled

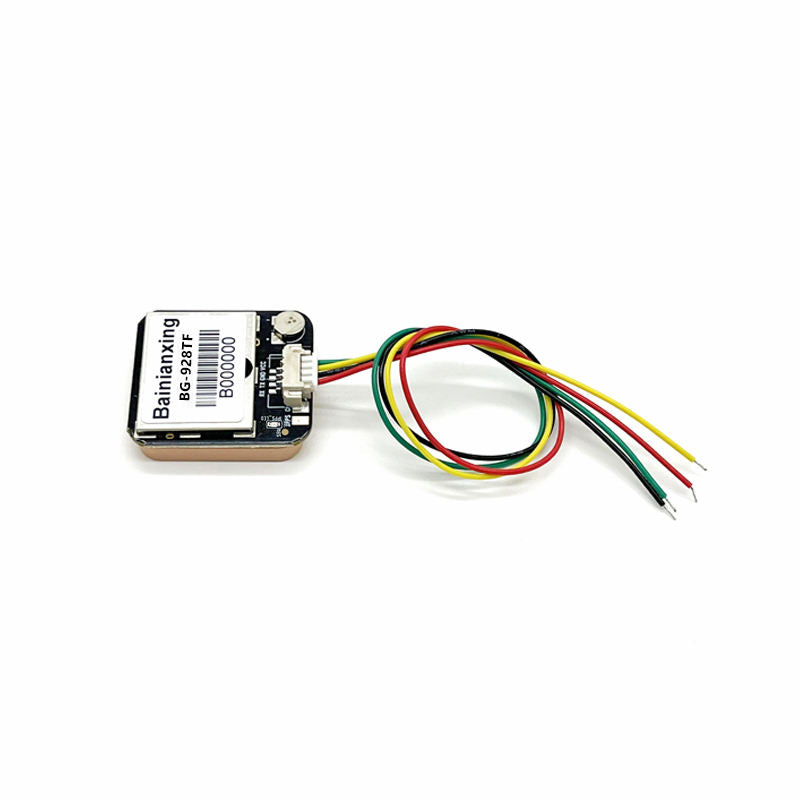

  • BG-928TF GNSS module with wires on a white background
Bainianxing 25Hz GNSS Module UBLOX UBX-M9140-KB GPS Module for UAV and Bait Boat

Bainianxing 25Hz GNSS Module UBLOX UBX-M9140-KB GPS Module for UAV and Bait Boat

$14.75
Setting
  • Multi-Constellation Concurrent Reception: Tracks 2-3x more satellites than GPS-only modules, ensuring stable positioning in obstructed environments.
  • Onboard Flash Memory: Allows users to customize and permanently save configurations (e.g., Baud rate, Update rate up to 10Hz, NMEA protocols) via commands.
  • Nanosecond-Level Timing (1PPS): Features a high-precision 1PPS (Pulse Per Second) output, ideal for time synchronization in communication base stations and power grids.
  • Ultra-Low Power Consumption: Operates at only 25mW, significantly extending the battery life of handheld devices and portable trackers.
  • Instant Hot Start: The integrated backup battery retains ephemeris data, enabling near-instantaneous re-positioning after power cycles.

You may also like

Product Overview

The BG-928TF GNSS module features the UBX M9 standard precision GNSS platform and provides exceptional sensitivity and acquisition times for all L1 GNSS systems. It is available in different variants to serve automotive and industrial tracking applications, such as navigation, telematics, fish boats, and UAVs.

The BG-928TF GNSS module delivers meter-level accuracy and supports the concurrent reception of four GNSS. The high number of visible satellites allows the receiver to select the best signals. This maximizes position accuracy, particularly under challenging conditions like deep urban canyons.

The BG-928TF GNSS module offers a position update rate of up to 25Hz. This allows dynamic applications such as UAVs to receive the position information with low latency.

Key Technical Advantages

  • Build on ubx M9 standard precision GNSS platform

  • Ultra high sensitivity: -167dBm

  • Extremely fast TTFF at low signal level

  • Built-in high-gain LNA

  • Maximum position availability with concurrent reception of 4 GNSS

  • Higher Position Accuracy: Less than 1.5m 2DRMS position accuracy

  • Up to 25 Hz position update rate for dynamic applications

  • Integrated flash memory

Datasheet

BU-1025TF Datasheet Download
